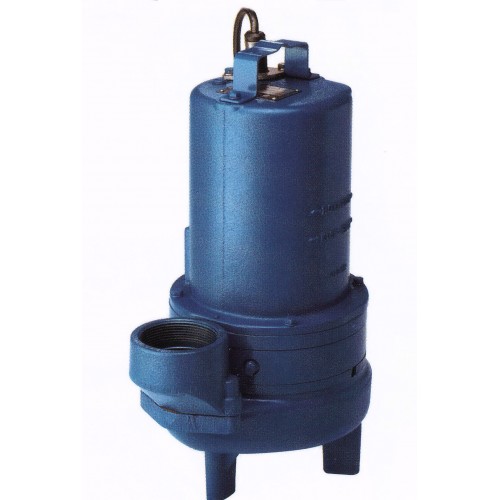

Barnes 2SEV1022DS 1-HP 240-volt 1-phase 20-foot cord Sewage Pump 104987


Barnes 2SEV-DS Technical Information
Barnes 2SEV-DS Installation Manual

Barnes SEV-DS Sewage Pump Model features most features apply to all models, some features are specific to certain models.
Please check the data sheet or contact customer service.

DISCHARGE .........................2” NPT, Female, Vertical, Bolt-on Flange
LIQUID TEMPERATURE ...104°F (40°C) Continuous
VOLUTE..................................Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............Cast Iron ASTM A-48, Class 30
SEAL PLATE ..........................Cast Iron ASTM A-48, Class 30
IMPELLER:
Design ...................................Vortex, open, with pump out vanes on back side. Dynamically balanced, ISO G6.3
Material .................................Cast Iron ASTM A-48, Class 30
SHAFT ....................................416 Stainless Steel
SQUARE RINGS...................Buna-N
HARDWARE ........................300 Series Stainless Steel
PAINT.....................................Air Dry Enamel
SEAL: Design ......................Tandum Mechanical, Oil-filled reservior
Material ................................Carbon/Ceramic/Buna-N, Hardware -300 Series Stainless
CORD ENTRY.......................20' (6m) Cord. Quick connect custom molded for sealing and strain relief. Plug supplied on 120V, 0.50HP,units.
SPEED ...................................1750 & 3450 RPM (Nominal)
UPPER BEARING................Single Row, Ball, Oil lubricated
Load.......................................Radial
LOWER BEARING..............Single Row, Ball, Oil lubricated
Load.......................................Radial & Thrust
MOTOR: Design ...............NEMA L -Single Phase, NEMA B -Three phase Torque Curve, Oil Filled, Squirrel Cage Induction
Insulation............................Class B, Class F on selected models
SINGLE PHASE..................Permanent Split Capacitor (PSC) Includes Overload Protection in Motor
THREE PHASE....................200-240/480 is Tri-Voltage. 600V. Requires Overload Protection to be included in control panel

OPTIONAL EQUIPMENT....Seal Material, Impeller Trims, Additional    cord, Normally Closed Temperature    Sensors with cord for 3 phase pumps    (Requires relay in control panel),    Normally Open Moisture sensor with cord    for DS pumps (Requires relay in control panel).

RECOMMENDED:
Accessories............Break Away Fitting (BAF)
Check Valve    (contact customer service)
Control Panel (contact customer service)
Control panel Seal Kit PN..............130176
Service Kit PN.....................................130172
