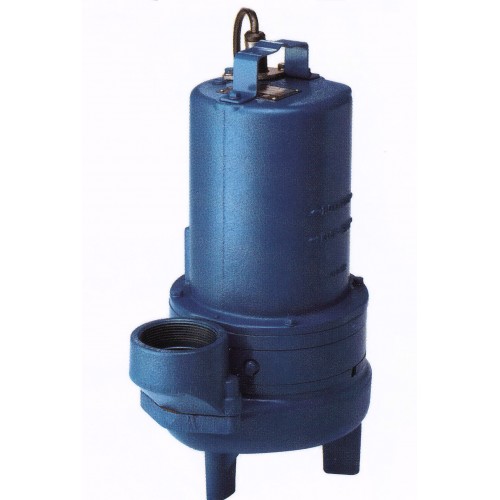

Barnes 2SEV514L 1/2 HP 120 volt 20-foot cord Sewage Pump 104918

Barnes 2SEV514L 1/2 HP 120 volt 20-foot cord Sewage Pump 104918

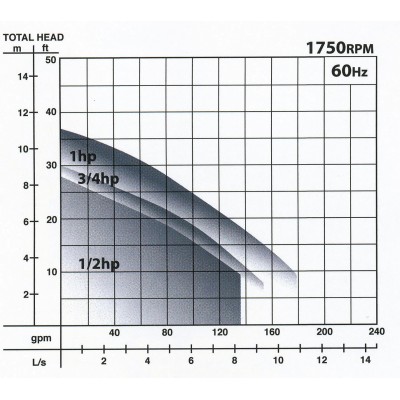

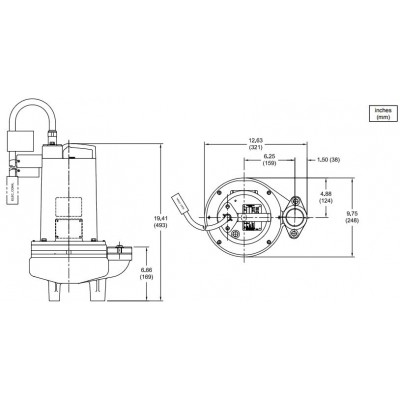

Barnes 2SEV-L Technical Information
Barnes 2SEV-L Installation Operation

Barnes SEV-L Sewage Pump Model features most features apply to all models, some features are specific to certain models.  Please check the data sheet or contact customer service.

DISCHARGE ............2” NPT, Female, Vertical, Bolt-on Flange

LIQUID TEMPERATURE ...104°F (40°C) Continuous

VOLUTE................Cast Iron ASTM A-48, Class 30

MOTOR HOUSING ........Cast Iron ASTM A-48, Class 30

SEAL PLATE ...........Cast Iron ASTM A-48, Class 30

IMPELLER: Design .....Vortex, open, with pump out vanes on back side. Dynamically balanced, ISO G6.3

Material .............Cast Iron ASTM A-48, Class 30

SHAFT ................416 Stainless Steel

SQUARE RINGS..........Buna-N

HARDWARE .............300 Series Stainless Steel

PAINT.................Air Dry Enamel

SEAL: Design .........Single Mechanical

Material .............Carbon/Ceramic/Buna-N, Hardware -300 Series Stainless

CORD ENTRY............20'(6m)Cord. Quick connect custom molded for sealing and strain relief. Plug supplied on 120V, 0.50HP,units.

SPEED ................1750 & 3450 RPM (Nominal)

UPPER BEARING.........Single Row, Ball, Oil lubricated

Load..................Radial

LOWER BEARING.........Single Row, Ball, Oil lubricated

Load..................Radial & Thrust

MOTOR: Design ........NEMA L -Single Phase, NEMA B -Three phase Torque Curve, Oil Filled, Squirrel Cage Induction

Insulation............Class B Class F on selected models

SINGLE PHASE..........Permanent Split Capacitor (PSC) Includes Overload Protection in Motor

THREE PHASE...........200-240/480 is Tri-Voltage. 600V. Requires Overload Protection to be included in control panel

OPTIONAL EQUIPMENT....Seal Material, Impeller Trims, Additional cord, Normally Closed Temperature Sensors with cord for 3 phase pumps (Requires relay in control panel).

RECOMMENDED:

Accessories...........Break Away Fitting (BAF)

Check Valve

Control Panel

Seal Kit PN...........130180

Service Kit PN........130207
