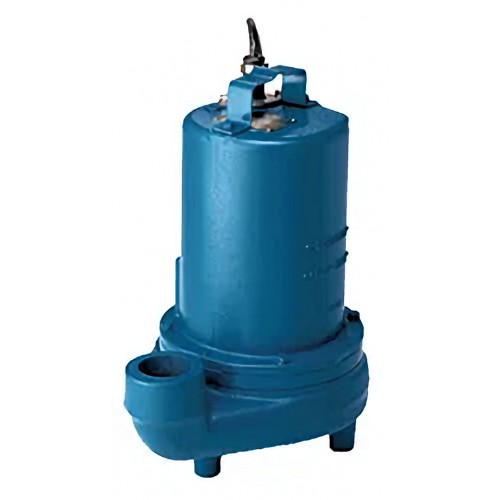

Barnes STEP522SS 1/2 HP 230v Effluent Septic Tank Pump 105046

Barnes STEP512SS HP, 1/2 HP 230v Effluent Septic Tank Pump 105046

Barnes Crane STEP Effluent Pump Installation Manual

Barnes STEP Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications

Barnes STEP-SS Series Submersible Effluent Pump Features

Cast Iron Construction

NEMA L-single phase, oil filled motor, squirrel cage induction

Permanent split capacitor motor with overload protection

Upper bearing: single row, ball, oil lubricated

Lower Bearing: Single row, ball, oil lubricated

Single mechanical seal

Carbon/Ceramic/ seal with nuna-N

300 grade stainless steel hardware

Polypropylene impeller with Stainless Steel Insert

2" NPT Female Vertical Discharge

Maximum temperature: 104°F (40°C) continuous

Carton Dimensions: 16” X 11” X 24” 85LB
