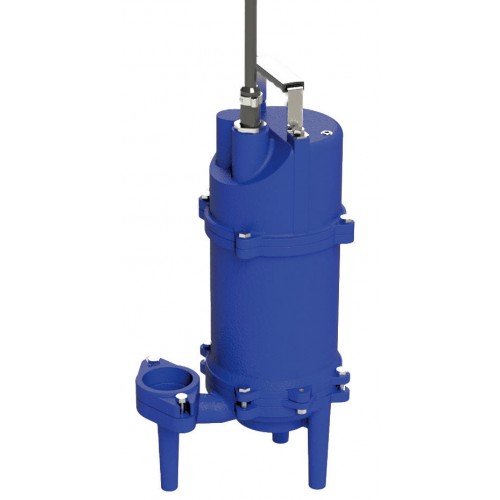

Barnes RV101 1-HP 120v 145469 Sewage Grinder Pump

Crane Barnes RV101 1-HP 120v 145469 Sewage Grinder Pump

Sales Brochure

Procuct Catalog

Insallation manual

FOR CHALLENGING RESIDENTIAL APPLICATIONS REQUIRING GREATER HEAD PRESSURE

RIVAL 1HP Grinder Pumps are engineered to vigorously reduce solids in residential sewage applications where

basic sewage pumps continue to clog and underperform.

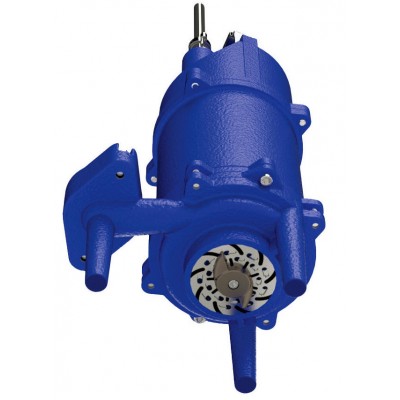

Axial Cutter: Provides Superior Non-Clogging versus Radial designs

• Motor Options: 115V and 230V

• Retrofit: Designed for drop in retrofit to replace any existing small horsepower

residential sewage pump and other 1HP grinder pumps

• Float: Available in manual and automatic designs

• Non-Overloading: Built to handle varying flows without wear

1HP GRINDER PUMP

FOR CHALLENGING RESIDENTIAL APPLICATIONS

RIVAL 1HP Grinder Pumps are engineered to vigorously reduce solids in residential sewage applications where basic sewage pumps continue to clog, cannot meet head requirements and generally underperform.

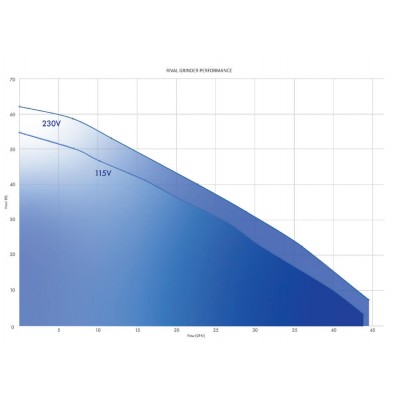

RV GRINDER PUMP FEATURES

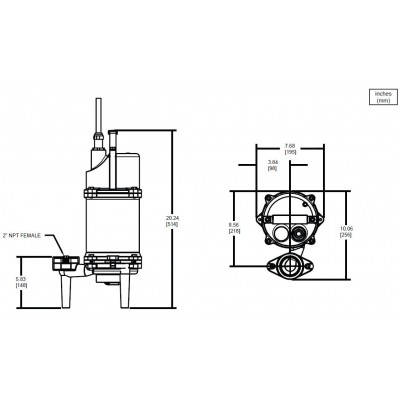

DISCHARGE .................................... 2” NPT

LIQUID TEMPERATURE ................. 104°F (40°C) Continuous

VOLUTE ............................................. Cast Iron ASTM A-48, Class 30

MOTOR HOUSING............................. Cast Iron ASTM A-48, Class 30

SEAL PLATE ..................................... Cast Iron ASTM A-48, Class 30

IMPELLERS: Design ....................... Semi-open, With Pump Out Vanes

On Back Side. Dynamically Balanced,

ISO G6.3.

Material ...................... Bronze

CUTTER PLATE ................................ Hardened 440C Stainless Steel, Rockwell® Hardness; C-55.

CUTTER ............................................. Hardened 440CStainless Steel, Rockwell® Hardness; C-55.

SHAFT ............................................... 416 Stainless Steel

SQUARE RINGS ................................ Buna-N

HARDWARE....................................... 300 Series Stainless Steel

PAINT ................................................. Powder Coat

SEAL: Design ........................ Single Mechanical

Material....................... Rotating Faces - Silicon-Carbide. Stationary Faces - Silicon-Carbide, Elastomer - Buna-N

Hardware -300 Series Stainless

CORD ENTRY .................................... 20 ft.

CORD Manual........................ CSA/UL Approved, 14/3 Type SJTOW

UPPER BEARING: Design ........................ Single Row, Ball

Lubrication..Oil

Load ........................... Radial & Thrust

LOWER BEARING: Design ........................ Single Row, Ball

Lubrication .Oil

Load............................ Radial & Thrust

MOTOR: Design ........................ NEMA L-Single Phase Torque Curve,

Oil-Filled, Squirrel Cage Induction (includes overload protection in the motor),

Insulation ................. Class F

SINGLE PHASE.................................. Capacitor Start/Capacitor Run.

OPTIONAL EQUIPMENT.................... Float

The RV Rival Grinder Pump is available in complete assembled sewage pit packages

PIT PRO FEATURES

• Removable FloatTREE design for easy float maintenance; flange includes provision for optional alarm float

• Split cover allows simplified basin access

• Sidewall ribs lock basin in place when concrete floor is poured

• Inlet hubs easily connect to piping with flexible rubber connectors (provided by others)

• Ribbed floor limits pump torque rotation

• Liquid Temperature 104°F (40°C)
