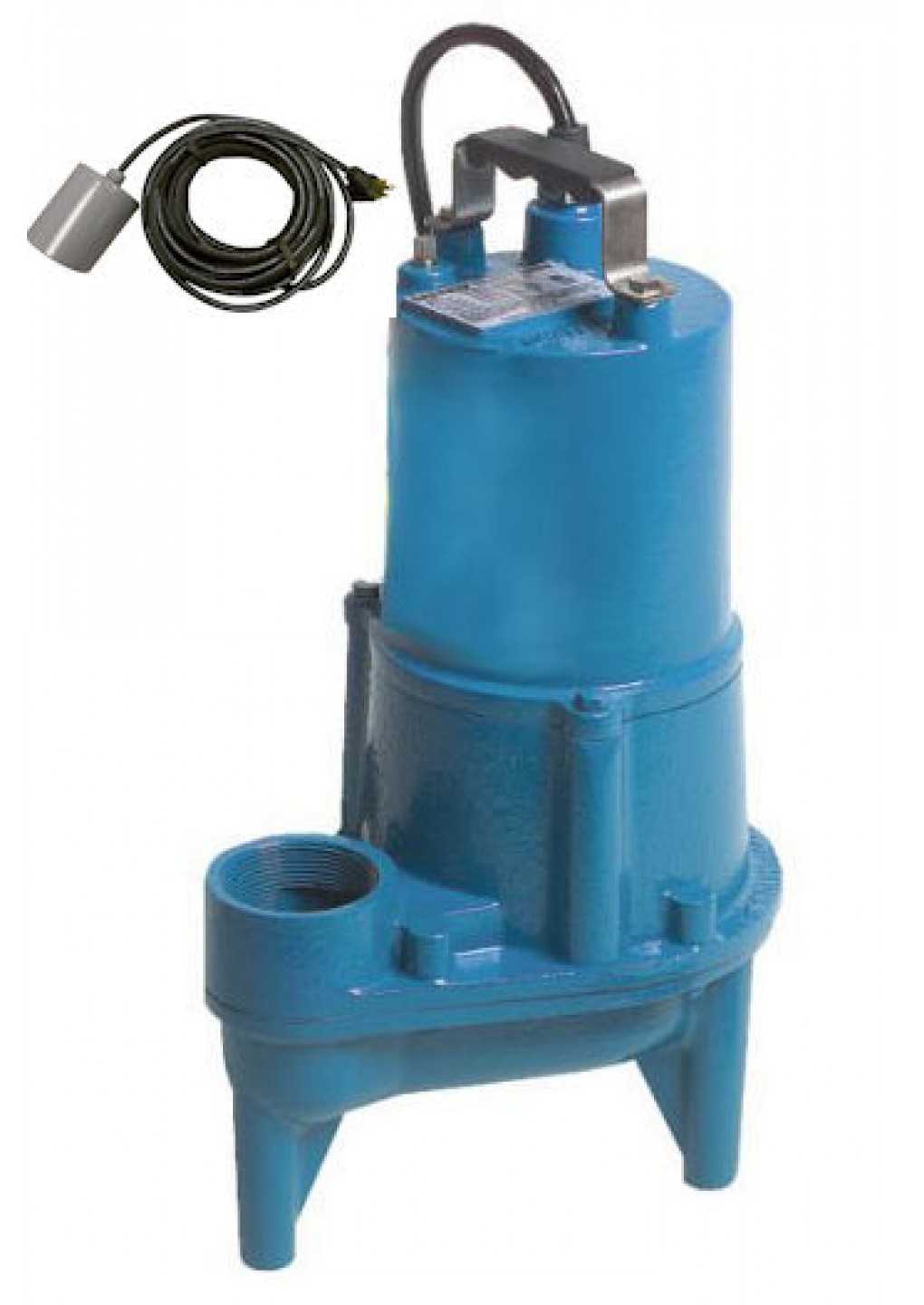

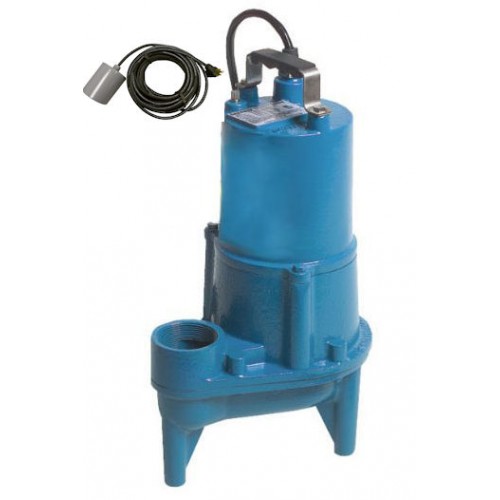

Barnes SEV412A 1/2 HP 115v 20-foot cord 101293 automatic Sewage Pump 2" discharge

Barnes SEV412A Sewage Pump 1/2 HP, 1/2 HP 115v 101293 automatic, 2" discharge

Barnes Crane SEV412 Sewage Pump Brochure
Barnes Crane SEV412 Sewage Pump Installation Manual

Barnes SEV sewage pumps are industry leading high quality, high performance, rugged, heavy duty designed pumps capable of handling up to 2 inch spherical solids.  SEV pumps utilize vortex impeller and corrosion resistant cast iron and stainless steel components to provide reliability in the toughest residential sewage ejector applications.

Also available in other model variations; EV412A, SEV412VF, SEV412AT, and SEV412AFT models, contact us for more information.

Barnes SEV sewage pump features:

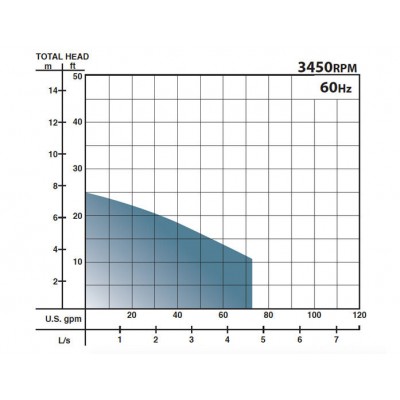

• Maximum flow rate to 72gpm at 11’ of head
• Maximum shutoff head of 25’
• Vortex impeller provides 2” solids handling capability
• Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw
• 1/2hp 3450rpm single phase motor includes overload protection
• Heavy duty upper and lower ball bearings are oil lubricated for superior cooling and maximum life

Heavy Duty Materials of Construction

• Cast iron motor housing
• Cast iron pump body
• Cast iron multi-vane vortex impeller
• Stainless steel pump shaft
• Stainless steel hardware
• Buna-N O-rings

Level Control Options

• Manual operation, no control provided
• Wide angle mechanical float mounted on discharge pipe or pump body
• Snap action vertical float switch mounted on discharge pipe or pump body
• All switches utilize “piggy back” switches which eliminates the need to pull pump to check for switch failure.

Design Features

• 2” NPT outlet connection
• Proven cord entry design prevents leakage
• Heavy duty industrial Type 21 silicon carbide seal
• ½ hp motor for efficient and reliable effluent pumping
• Motor capacitor provides high start torque
• Corrosion-resistant cast iron construction
• Vortex impeller and generous casing volute easily pass up to 2” solids
• Oil-lubricated ball bearings provide maximum life
• Stainless steel lifting handle with rubber grip
• Standard 20’ cord length
