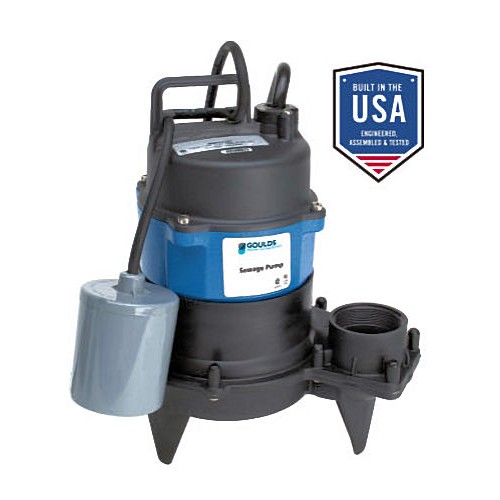

Goulds WW0511AC 1/2 HP 115v 10-foot cord automatic sewage pump 3872

Goulds Pump Model WW0511A 3885 WW Series, Submersible Sewage Pump  1/2 HP, 115 Volt. piggyback plug wide angle switch

Goulds 3872 WW05 Technical brochure

Goulds 3872 WW05 Installation manual

Single Phase, 1550 RPM,
2" Discharge, 13 Max Amps, 10' Cord Length, 2" Solids Handling Size,

Impeller is glass-filled thermoplastic, full-vortex design with pump out vanes to keep solids away from mechanical seal

Casing and base has is made of rugged glass-filled thermoplastic to provide superior strength and corrosion resistance

Cast iron motor housing transfers heat from motor, provides strength, and durability

Thermoplastic motor cover with integral handle and float switch attachment points

Upper and lower heavy duty ball bearing construction

Power cable is severe duty rated oil and water resistant

Power cord supplied with three prong grounding plug

O-ring provides positive sealing and it is easily replaced during maintenance

Stainless steel fasteners

Capable of running dry without damage to components

Built in overload with automatic reset

2" solids handling

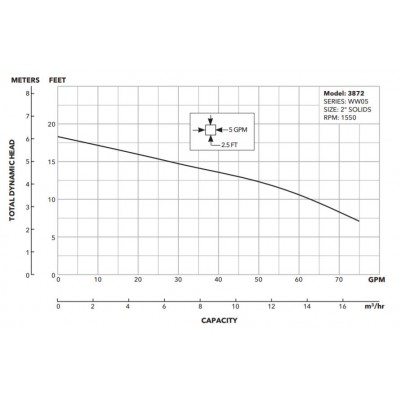

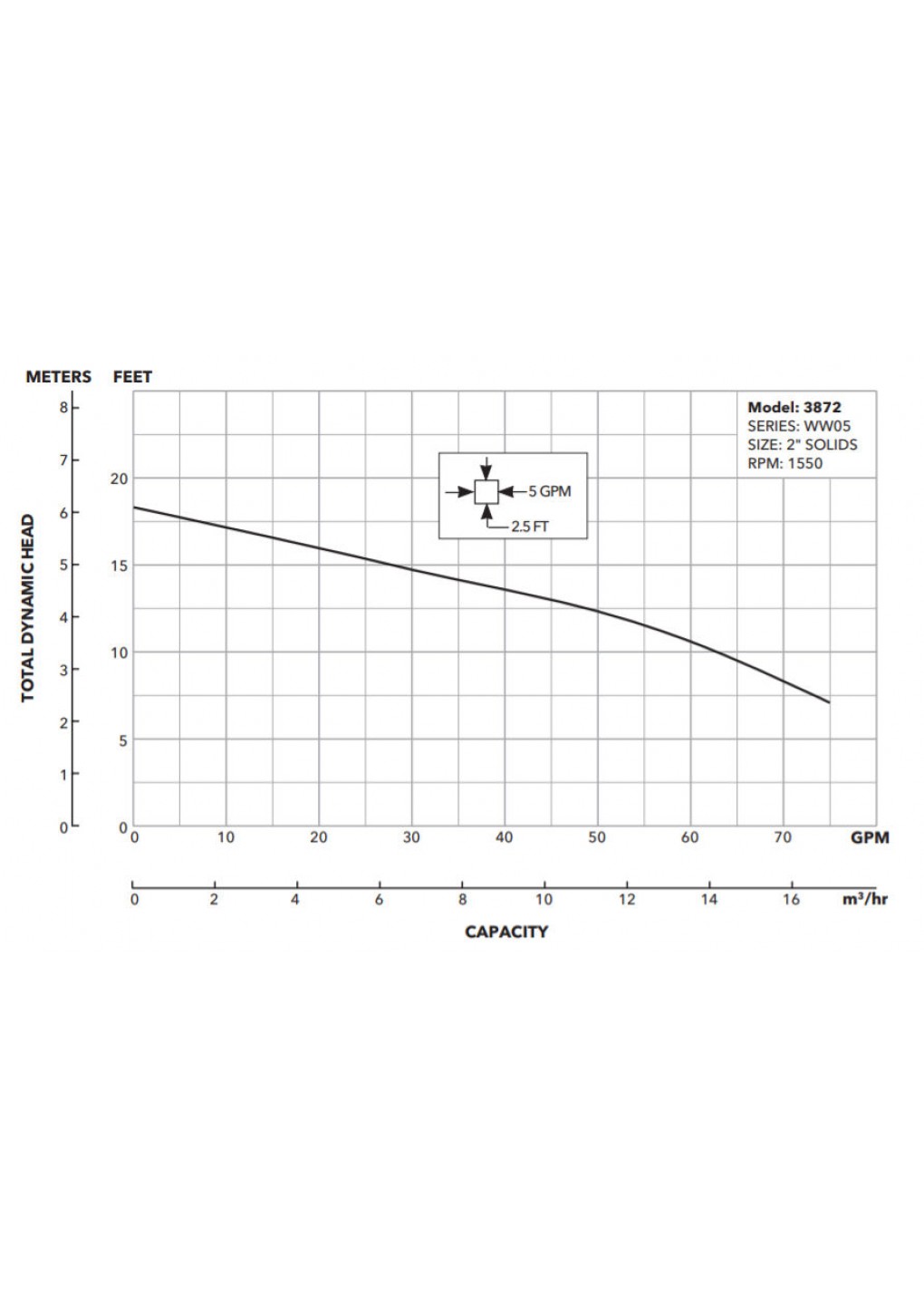

Maximum capacity: 75 GPM

Maximum head: 18 feet

Typical Applications

Residential and light commercial sewage systems

Dewatering

Water transfer
