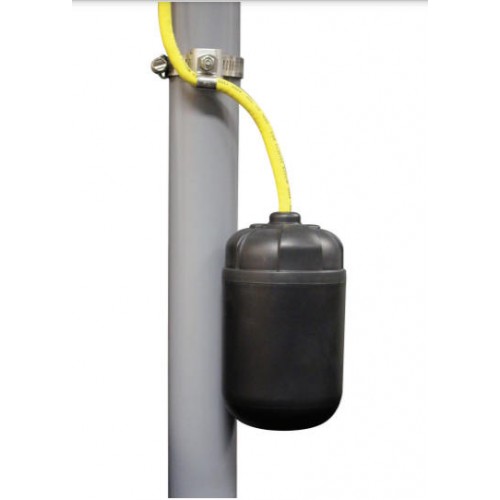

HighTempMaster™ 10-foot cord with plug 10HTMD2WP 1043548 250v mechanically-activated, wide-angle pump switch

SJE HighTempMaster™ 10-foot cord with plug 10HTMD2WP 1043548 250v mechanically-activated, wide-angle pump switch is designed to directly control pumps in high temperature sump applications up to

200°F (93°C) for:

• Water

• Sewage applications

It provides automatic control of pumps up to 13FLA, 78 LRA, 125V or 250V.

This SJE HiTempMaster™ pump switch is not sensitive to rotation or turbulence

allowing it to be used in both calm and turbulent applications.

Mechanically-activated, snap action contacts

• High impact, corrosion resistant, polypropylene float housing

• Adjustable pump range of 8 to 36 inches (20 to 91 cm)

• Twin wall design of float housing protects internal components from heat and moisture

SJE Hi Temp Master Product Information

SJE Hi Temp Master Installation Manual

This switch is available:

• for pump down applications

• with a 125 VAC or 250 VAC piggy-back plug

• without a plug for direct wiring in 125 VAC or 250 VAC applications

• in standard cable lengths of 15, 20, or 30 feet and 5, 6 or 10 meters

(longer lengths available)
