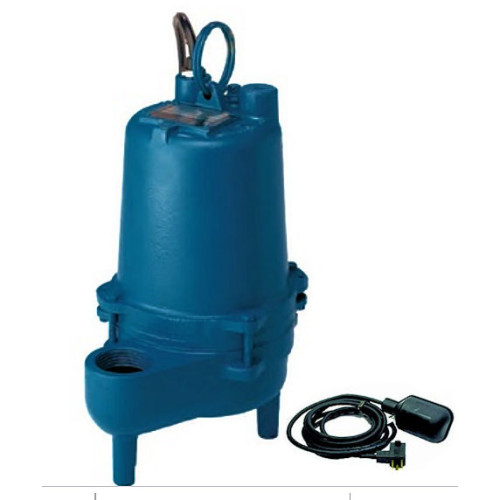

Barnes SE411A 4/10 HP 115 Volt 15-foot cord Sewage Pump 096748

Barnes Pumps SE411A Submersible Sewage Ejector Pump, 2" Discharge, 4/10 HP, 115 Volt, 60 Hz, Single Phase, 1750 RPM, 2" Solids Handling, 096748 Part Number, 15' Cord

Barnes Crane SE411 SE421 Installation Manual

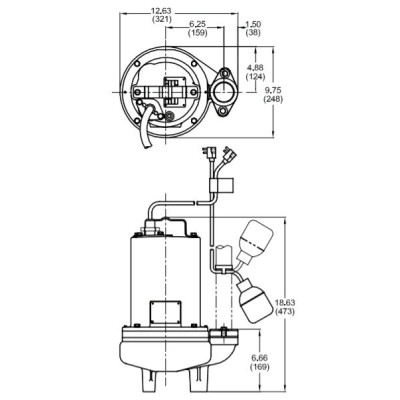

2” NPT, Female, Vertical discharge

LIQUID TEMPERATURE

SE411 77°F (25°C) Continuous

SE421: 104°F (40°C) Continuous

VOLUTE; Cast Iron ASTM A-48, Class 30

MOTOR HOUSING; Cast Iron ASTM A-48, Class 30

SEAL PLATE; Cast Iron ASTM A-48, Class 30

IMPELLER: Design; 2 Vane, Open with pump out vanes on back side, Dynamically Balanced, ISO G6.3 Material; Cast Iron ASTM A-48, Class 30

SHAFT 416 Stainless Steel

SQUARE RINGS; Buna-N

HARDWARE; 300 Series Stainless Steel

PAINT; Air Dry Enamel

SEAL Design; Single Mechanical, Oil Filled Reservoir, Secondary Exclusion Seal Material; Carbon/Ceramic/Buna-N Hardware - 300 Series Stainless

CORD ENTRY; 15 ft. (5m) Quick Disconnect Cord with plug On 115Volt, Pressure Gromment for sealing and strain relief

MOTOR SPEED; 1750 RPM (Nominal)

UPPER BEARING; Single Row, Ball, Oil Lubricated

Load Radial

LOWER BEARING; Single Row, Ball, Oil Lubricated

Load Radial & Thrust

MOTOR: Design; NEMA L Torque Curve, Oil Filled, Squirrel Cage Induction Insulation, Class B, SINGLE PHASE, Permanent Split Capacitor (PSC)
Includes Overload Protection in Motor
AUTOMATIC LEVEL CONTROL; "A" - Wide Angle, PVC, Mechanical, 15 ft (5m) cord with Piggy-Back Plug, N/O "VF" - Vertical Float, PVC, Snap Action, 15 ft (5m) cord, with Piggy-Back plug. OFF point ONLY is adjustable OPTIONAL EQUIPMENT Seal Material, Additional Cord
