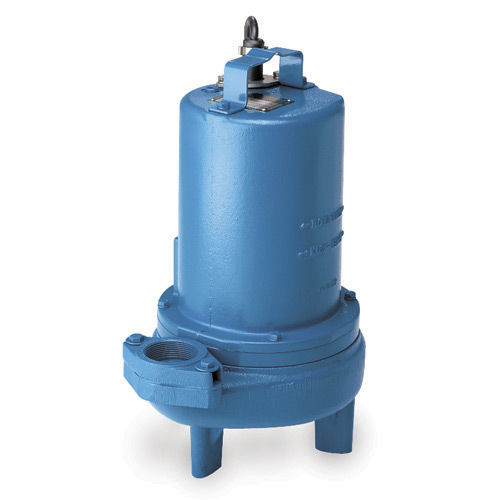

Barnes SE544L 1/2 HP 480v 3-phase 20-foot cord Manual No-float switch Sewage Pump 104882

Barnes SE544L .5 HP 480v 3-phase 20-foot cord Manual No-float switch Sewage Pump 104882

Barnes Crane Series SE-L Specifications
Barnes Crane Series SE-L Installation manual

Barnes SE, SE-L Series, Sewage Pumps 2" NPT Vertical Flanged Discharge, 165 GPM Max, 25 ft Max Head, 20 ft Cord, Automatic, Single Seal

DISCHARGE 2” NPT, Female, Vertical, Bolt-on Flange
LIQUID TEMPERATURE 104°F (40°C) Continuous
VOLUTE Cast Iron ASTM A-48, Class 30
MOTOR HOUSING Cast Iron ASTM A-48, Class 30
SEAL PLATE Cast Iron ASTM A-48, Class 30
IMPELLER: Design 2 Vane, open, with pump out vanes on back side. Dynamically balanced, ISO G6.3 Material Cast Iron ASTM A-48, Class 30
SHAFT 416 Stainless Steel
SQUARE RINGS Buna-N
HARDWARE 300 Series Stainless Steel
PAINT Air Dry Enamel
SEAL: Design Single Mechanical Material Carbon/Ceramic/Buna-N Hardware -300 Series Stainless
CORD ENTRY 15ft. (5m), 20 ft. (6.1m) Cord with plug on 120 volt & .5HP, 240 volt, 1 phase. Quick connect custom molded for sealing and strain relief
SPEED 1750 RPM (Nominal)
UPPER BEARING Single Row, Ball, Oil lubricated Load Radial
LOWER BEARING Single Row, Ball, Oil lubricated Load Radial & Thrust
MOTOR: Design NEMA L -Single Phase, NEMA B -Three phase Torque Curve, Oil Filled,
Squirrel Cage Induction Insulation Class B Class F on selected models
3 PHASE Permanent Split Capacitor (PSC) Includes Overload Protection in Motor

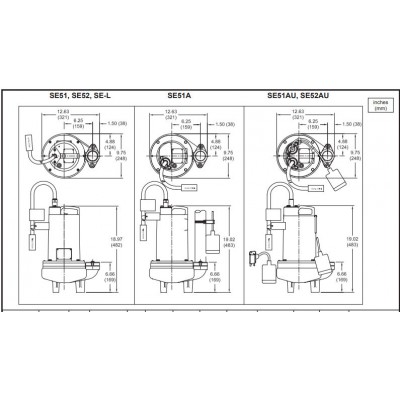

16” X 12” X 24” 85 LB
