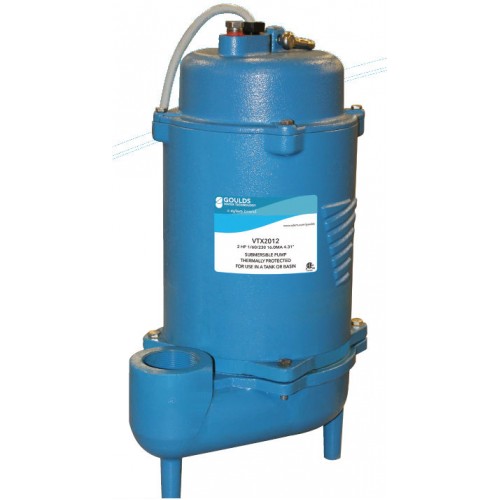

Goulds VTX0511 Sewage Pump 1/2 HP 115v

Goulds VTX0511 Sewage Pump 1/2 HP, 1/2 HP 115v

Goulds VTX Sales Brochure

Goulds VTX Technical Brochure

Goulds VTX Series submersible pumps are a durable line of vortex sewage pumps with all the benefits you expect from Goulds Water Technology. They’re top-quality, high-performance products. The VTX Series is proudly built in the USA and backed by the Goulds Water Technology reputation for reliability and quality.

FEATURES & BENEFITS

• Field Serviceable: A built in dry cap makes it easy to replace the capacitor in the field.

• Resists Clogging: A vortex impeller handles stringy material and resists clogging better than a traditional two-vane impeller.

• Built to Last: A premium silicon carbide silicon carbide seal comes standard for superior abrasive resistance.

ADDITIONAL FEATURES

• A complete family of pumps ranging from ½ to 2 HP

• PSC motors for maximum starting torque

• Built-in thermal overload protection with automatic reset

• Oil-filled motor for constant heat dissipation and cool operation

• SJTOW severe duty oil and water resistant power cords, 20’ length

• NEMA three prong grounding plugs

FEATURES

Impeller: Cast iron, multivane, vortex style

Casing: Cast iron volute for maximum efficiency. Designed for easy installation on A10-20 slide rail or base elbow rail systems.

Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers.

Shaft: Corrosion-resistant, 300 series stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation.

Fasteners: 300 series stainless steel

Capable of running dry without damage to components.

Designed for continuous operation when fully submerged.

APPLICATIONS

Specifically designed for the following uses:

• Homes • Water transfer

• Sewage systems • Light industrial

• Dewatering/Effluent • Commercial applications

Anywhere waste or drainage must be disposed of quickly, quietly and efficiently.

SPECIFICATIONS

Pump

• Solids handling capabilities: 2" maximum

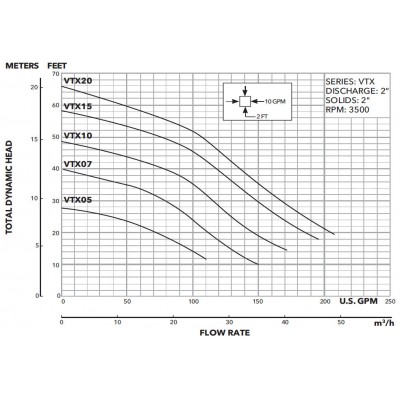

• Capacities: up to 208 GPM

• Total heads: up to 66 feet TDH

• Discharge size: 2" NPT threaded as standard.

• Temperature: 104°F (40°C) continuous 140°F (60°C) intermittent.

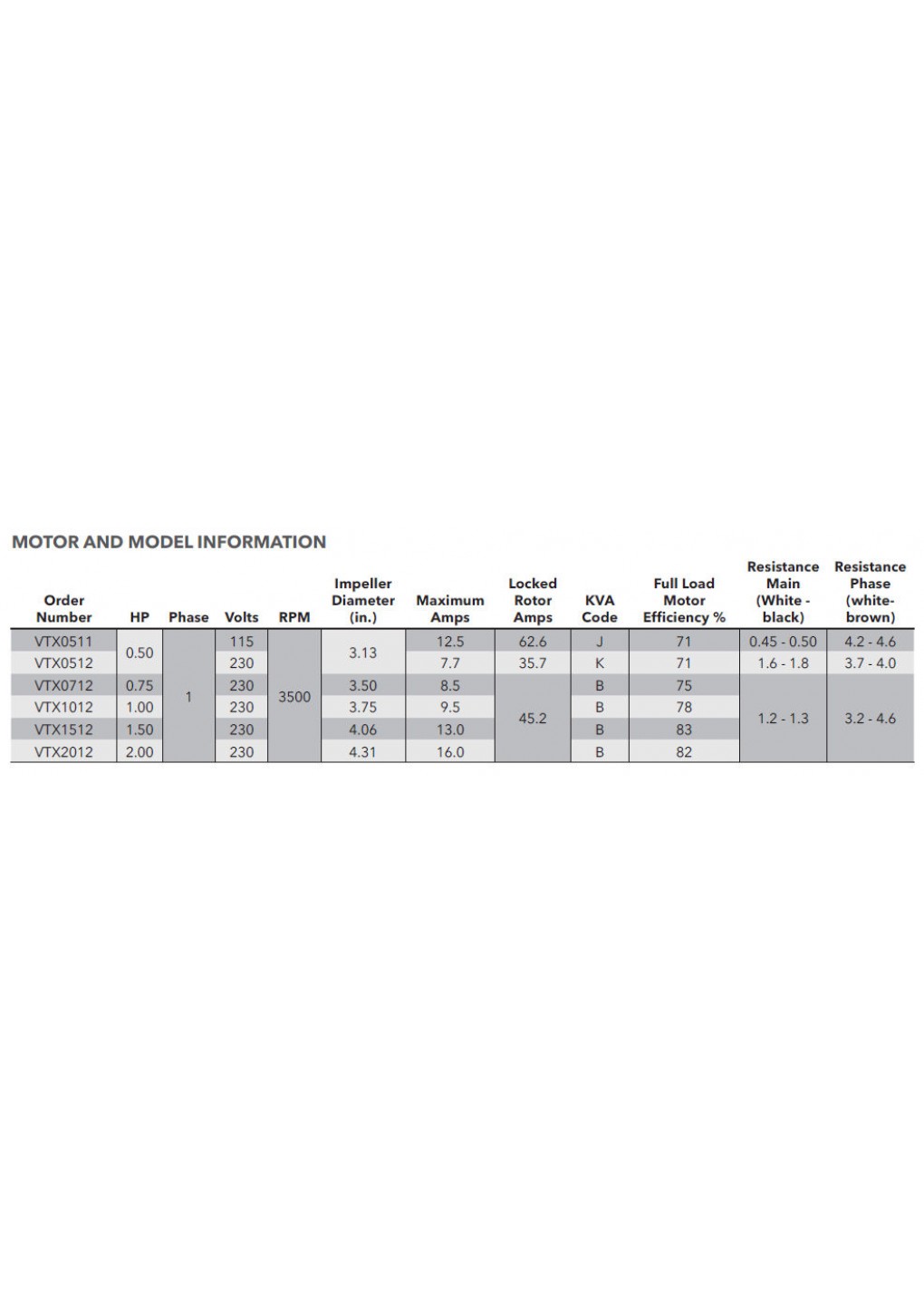

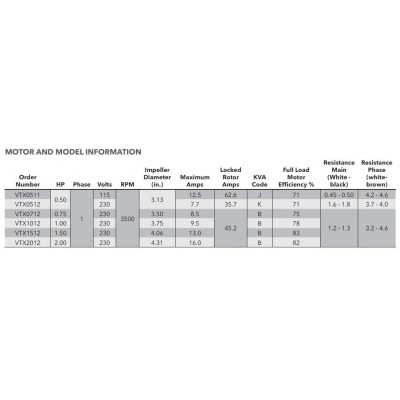

MOTORS

• Fully submerged in high grade turbine oil for lubrication and efficient heat transfer. All ratings are within the working limits of the motor.

Class B insulation on 1⁄2, 3/4, 1, 11⁄2, 2 HP models.

Single phase (60 Hz):

• PSC motors for improved reliability with no starting switches and low start & running current.

• Built-in overload with automatic reset.

• SJTOW severe duty oil and water resistant power cords, 20' length.

• ½ – 2 HP models have NEMA three prong grounding plugs.
