Vertical Master 120 volt 10 foot cord mechanically activated pump float switch no plug 10VMWOP 1003776

Vertical Master 120 volt 10 foot cord mechanically activated pump float switch no plug 10VMWOP 1003776

Vertical Master Catalog

Vertical Master installation manual

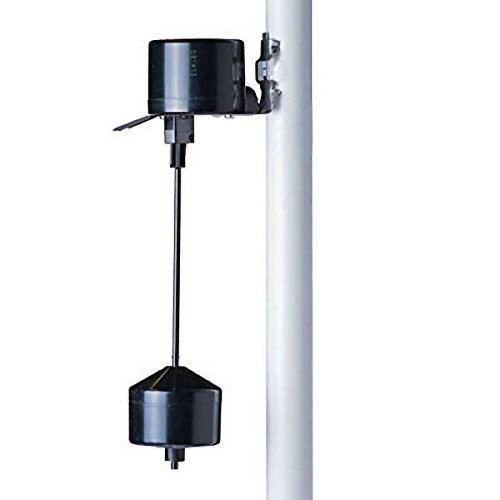

Designed for limited space applications. VerticalMaster® pump switch is designed to directly control pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications, and laundry trays, as well as in large tanks.

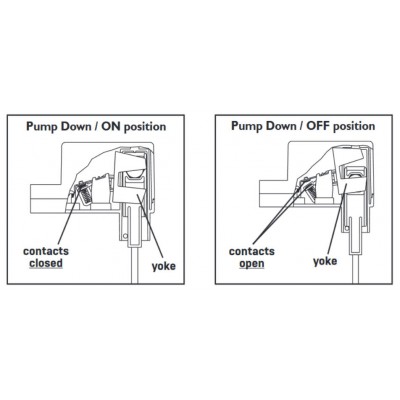

The SJE VerticalMaster® pump switch is not sensitive to turbulence and is available for pump down applications only. Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC, Adjustable pumping range of .75 – 6.5 inches (2 – 17 cm)

1 = 120VAC,

2 = 230VAC

WP = With Plug

WOP = With Out Plug

NOTE: Descriptions are grouped by cable length measured in feet (10, 15, 20, 30).

MOUNTING BRACKET and HOSE CLAMP are standard.

PACKAGING: Boxed - Standard

ADDITIONAL CABLE: Longer cable lengths available.
