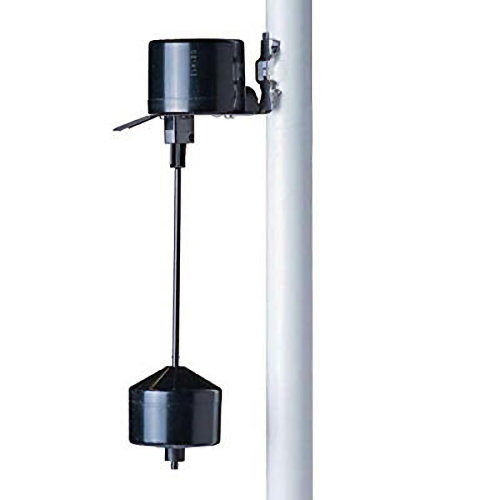

Vertical Master 230 volt 20 foot cord mechanically activated pump float switch 20VM2WP 1003774

Vertical Master 230 volt 20 foot cord mechanically activated pump float switch 20VM2WP 1003774

Vertical Master Catalog

Vertical Master installation manual

Designed for limited space applications. VerticalMaster® pump switch is designed to directly control pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications, and laundry trays, as well as in large tanks.

The SJE VerticalMaster® pump switch is not sensitive to turbulence and is available for pump down applications only. Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC, Adjustable pumping range of .75 – 6.5 inches (2 – 17 cm) 1 = 120VAC 2 = 230VAC WP = With Plug WOP = With Out Plug

NOTE: Descriptions are grouped by cable length measured in feet (10, 15, 20, 30).

MOUNTING BRACKET and HOSE CLAMP are standard.

PACKAGING: Boxed - Standard

ADDITIONAL CABLE: Longer cable lengths available.
