Xpert Alert® WiFi indoor alarm system helps protect your home 24/7 from potentially
costly damage due to flooding, pump failure or freezing pipes. The system monitors and
reports any residential alarm condition by notifying you locally (audible and visual alarms)
and remotely via SMS text messages and/or emails over a WiFi or Ethernet network to

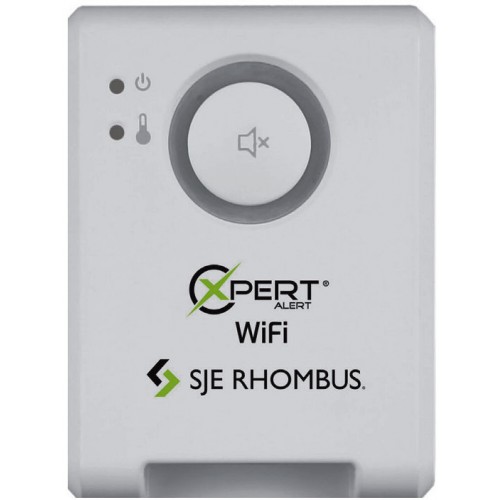

your smartphone, tablet or computer. The sleek design of the enclosure, with its unique
shape, smooth rounded edges, and large push button with LED light ring, makes this
attractive alarm ideal for residential applications, including sump pump basins, lift pump
chambers, holding tanks, sewage, agricultural and other water applications.

When the tank level rises, the high water float activates the alarm to audibly and visually
warn of potentially threatening liquid level conditions. The alarm features an easy-to-see
LED alarm light ring that illuminates red for alarm 1 and amber for alarm 2. The alarm horn
can be silenced by pressing the large utton, but the LED remains on as long as the alarm
condition exists. Once the condition is cleared, the alarm automatically resets. A red “Low

Temperature” LED activates when the temperature falls below 40°F (4°C) to help protect
against freezing pipes; this can be disabled for installations in cold areas. When alarm
conditions occur, you are notified by text/email message.

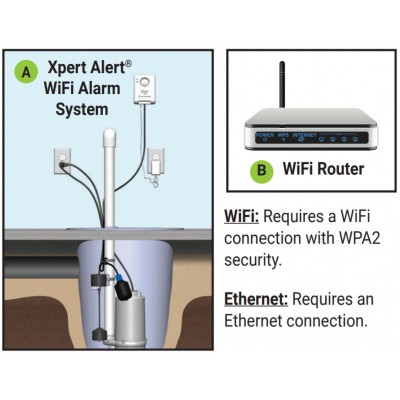

The alarm works with your existing WiFi or Ethernet network. Since it does not rely on
a cellular connection, it is an excellent solution for areas with poor cellular service.
No monthly fees or contracts! Easy installation and setup make this a great option for
businesses, rental properties and seasonal homes to help prevent costly damage.

 FEATURES

Compact NEMA 1 rated indoor enclosure is designed for easy installation

Automatic alarm reset

(2) sensor inputs to monitor (2) separate liquid level conditions.

LED alarm light ring warns of alarm status; red for alarm 1, amber for alarm 2

Audible alarm activates alarm 1, alarm 2, low temperature and low battery chirp

Notifies up to 4 contacts (2 email contacts and 2 text, text in country code 1 only,
maximum of 10 text messages sent per day)

Notifies the user via SMS text and/or email notifications of conditions: alarm
1, alarm 2, power lost, power restored, low temperature, low battery and alarm offline

WiFi connectivity for remote alarm report

Simple Access Point Mode push-button connection

Manual WiFi setup through Ethernet cable connection to router/modem (cable not included)

NOTE: Installation of an Uninterruptible Power Supply (UPS) on internet modem and wireless router
is recommended. The internet connection must be maintained to receive notifications

LED low temperature indicator activates at 40°F (4°C) to alert of potential freezing conditions
(green for temperature normal, red for low temperature); may be deactivated when temperature monitoring is not required

LED power indicators (green = primary power, amber = battery backup, red = low battery)

LED network status indicators (blue flashing = network connection setup, blue constant = network connection established)

Alarm horn sounds at 80 decibels at 10 feet (3 meters)

Large, easy-to-use test/silence push-button located conveniently on front of alarm

If primary power fails, the alarm system continues to work due to integral rechargeable battery backup feature

Switching mechanism operates on low voltage and is isolated from the power line to reduce the possibility of shock

Low battery chirp

Includes auxiliary alarm contacts for easy attachment of remote devices (continues to operate during loss of power)

Covered terminal block for easy, secure float switch installation
