PumpMaster Plus 20PMPU2WP 1003263 20-foot cord 230-volt mechanical pump up float switch with plug

PumpMaster® Plus 20PMPU2WP 1003263 20-foot cord 230-volt mechanical pump up float switch with plug

Pumpmaster Plus Catalog
Pumpmaster Plus Quick Fit Features
Pumpmaster Plus Installation

Controls pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC in water and sewage applications.

SJE PumpMaster® Plus pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.

Check out the new SJE PumpMaster® Plus Quick Fit pump switch – the float and piggy-back plug are separate to allow for a quick fit installation.

Features:
Heavy-duty contacts
Controls pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC
Adjustable pumping range of 7 – 36 inches (18 -91 cm)

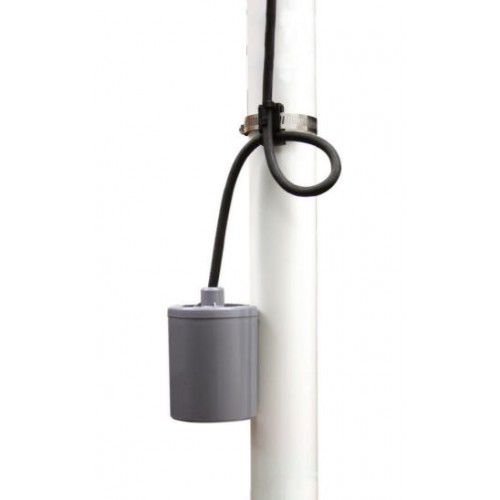

Includes standard mounting clamp and boxed packaging
SJE PumpMaster® pump switch on/off position diagram
Options based on model selected:
For pump up or pump down applications as specified by part number
With a 120 VAC or 230 VAC piggy-back plug
Without a plug for direct wiring in 120 VAC or 230 VAC applications
In standard cable lengths of 10, 15, 20, or 30 feet (3, 5, 6, or 10 meters) – longer lengths available

UL Recognized, CSA Certified
Five-Year Limited Warranty

Specifications
CABLE: Flexible 14 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
FLOAT: 3.05 inches diameter x 3.56 inches long (7.75 x 9.04 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140°F (60°C)
ELECTRICAL: 120 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 15 amps
Maximum Pump Starting Current: 85 amps
Recommended Pump HP: 3/4 HP or less
230 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 15 amps
Maximum Pump Starting Current: 85 amps
Recommended Pump HP: 2 HP or less

NOTE: This switch must be used with pumps that provide integral thermal overload protection.
A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.
