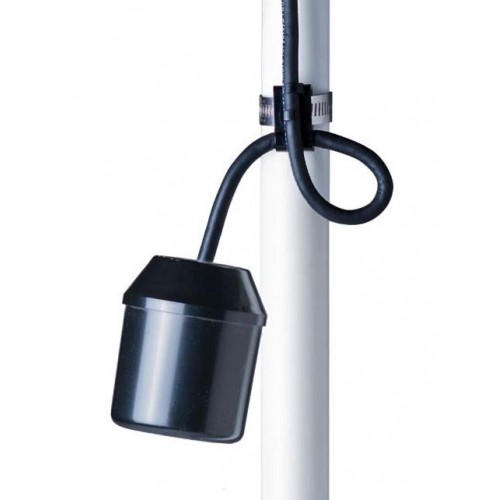

Sensor float mini control switch 10MPCNO 1002181

1002181 10MPCNO Sensor float mini control switch, 10'cord, Pipe clamp style, normally open
Mercury activated, narrow angle float switch designed to activate pump control panels and alarms.

SJE Rhombus Mini Switch Specifications

SJE Rhombus Control Switch Overview

SJE Rhombus control switch installation

Sensor Float® Mini control switch accurately monitors high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in confined sewage and non-potable water applications.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.

Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.

This switch is not sensitive to rotation. Contact SJE Rhombus regarding intrinsically safe applications.

SJE-Rhombus Sensor Float® Mini Control Switch Typical Application

Mercury Activated, Narrow-Angle Float Switch Designed to Activate Pump Control Panels and Alarms.

SJE-Rhombus Sensor Float® Mini Control Switch Features

Designed for Use in Confined Spaces

Control Differential of .5 Inches (1 cm) Above or Below Horizontal

UL Listed for Use in Non-Potable Water and Sewage, CSA Certified

Five-Year Limited SJE Rhombus Warranty
