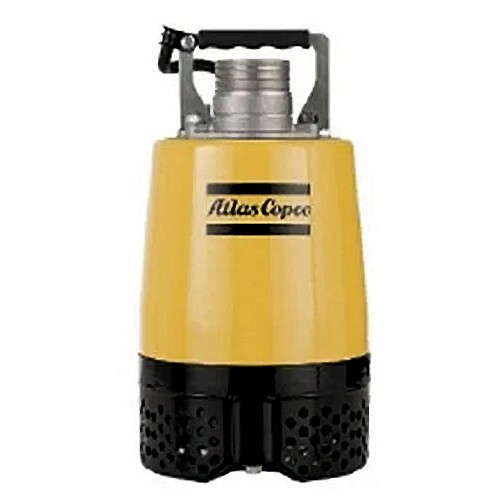

Atlas Copco WEDAD08N 1 HP 115v Dewatering Pump

WEDAD08N Atlas Copco 1HP 115v dewatering pump

Atlas Copco WEDA pump specifications
Atlas Copco Dewatering Pump Catalog

Fast and effective dewatering in a small but rugged package. Atlas Copco WEDA pumps are ideal for construction and rental industries, where small, lightweight, portable and easily maintained pumps quickly perform daily, demanding dewatering.

Features

• Dry running capacity

• Motor thermal protection

• Plug and pump manual operation

• Built-in high torque capacitor

• Double mechanical shaft seals constructed from silicon carbide

• Additional lip seal for extended lifespan of the primary seal

• Smooth and threaded discharge connection supplied as standard with the pump

• Easily accessed impeller and pump housing

• ISO 9001 and cULus approved

Model D04N and Model D08N Drainage Pumps

• Polyurethane semi vortex impeller designed to handle water on construction sites, in manholes and industrial pits with very low risk of clogging;

• High torque capacitor/motor and a three terminal auto cut prevent the motor from overload and dry burning.

Specifications

• 2” NPT-F Discharge

• Motor Rating – 1.0 HP

• 115Volt

• 10 Amp draw

• Max. Flow - 86 GPM

• Head - 50 ft.

• Max. Solid Size - 0.33”

• Cord Length - 33 ft.

• Max. Submergence - 16 ft.

• Impeller Type - semi-vortex

• Impeller Material - polyurethane

• Shaft Seals - silicon carbide

• Motor Protection - thermal protection

• Motor Insulation - class E

• Ph Range - 6.5 - 8

• Max. Temp of Fluid - 95 F

• Part Number - 8162173000

Carton Dimensions

8” X 8” X 24” 33LB
