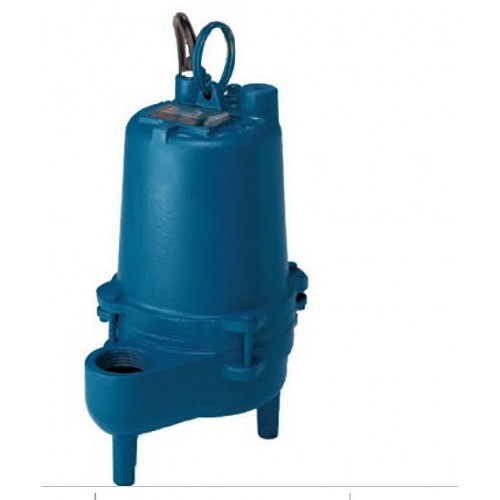

Barnes SE411 .4 HP 115 Volt 15-foot cord Manual Sewage Pump 096747

Barnes SE411 Manual (no-switch) Sewage Pump .4 HP, 4/10 HP 115v  096747

Barnes Crane SE411 SE421 Sewage Pump Specifications

• Barnes Pumps SE411 Submersible Sewage Ejector Pump, 2" Discharge, 4/10 HP, 115 Volt, 60 Hz, Single Phase, 1750 RPM, 2" Solids Handling, 096747 Part Number, 15' Cord Length
• 2” NPT, Female, Vertical discharge.  77°F (25°C) Continuous liquid temperature
• Cast Iron ASTM A-48, Class 30 Volute, seal plate and motor housing
• 2 Vane impeller design, open with pump out vanes on back side, Dynamically Balanced, ISO G6.3 Material; Cast Iron ASTM A-48, Class 30
• 416 Stainless Steel shaft
• Buna-N seals
• 300 Series Stainless Steel hardware
• Air Dry Enamel paint
• Single Mechanical seal, Oil Filled Reservoir, Secondary Exclusion Seal Material ...........Carbon/Ceramic/Buna-N Hardware - 300 Series Stainless
• 15 ft. (5m) Quick Disconnect Cord with plug with ressure Gromment for sealing and strain relief
• 1750 RPM (Nominal) motor speed
• BEARINGS; Single Row, Ball, Oil Lubricated Load upper, Radial lower, Single Row, Ball, Oil Lubricated Load, Radial & Thrust
• NEMA L Torque Curve, Oil Filled, Squirrel Cage Induction Insulation, Class B SINGLE PHASE Motor with Permanent Split Capacitor (PSC) Includes Overload Protection in Motor
• 15 ft (5m) cord, with Piggy-Back plug.

Barnes Crane SE411 SE421 Sewage Pump Specifications
