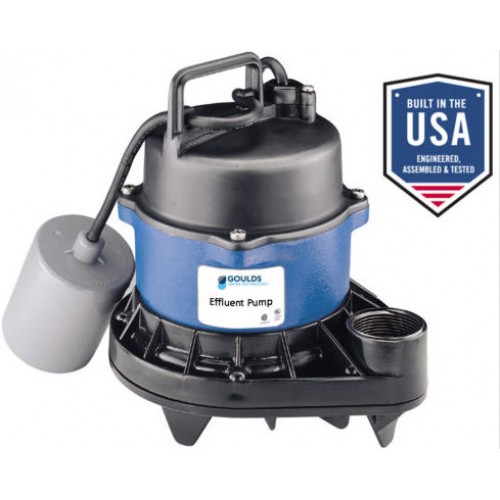

Goulds EP0411A 4/10 HP 115v automatic Effluent Pump 10-foot cord

Goulds EP0411A  4/10 HP 115v 20-foot cord automatic Effluent Pump Cast Iron / Thermoplastic

This model pump is provided with a float switch.

Goulds EP0411 Technical Brochure

Goulds EP0411 Installation manual

EP0411a Impeller: Thermoplastic semi-open design with pump out vanes for mechanical seal protection. EP05 Impeller: Thermoplastic enclosed design for improved performance. Casing and Base: Rugged thermoplastic design provides superior strength and corrosion resistance. Motor Housing: Cast iron for efficient heat transfer, strength, and durability. Motor Cover: Thermoplastic cover with integral handle and float switch attachment points. Power Cable: Severe duty rated oil and water resistant. Bearings: Upper and lower heavy duty ball bearing construction.

APPLICATIONS

Specifically designed for the following uses:

• Effluent systems

• Homes

• Farms

• Heavy duty sump

• Water transfer

• Dewatering

SPECIFICATIONS

• Solids handling capability: ¾" maximum.

• Capacities: up to 60 GPM.

• Total heads: up to 31 feet.

• Discharge size: 1½" NPT.

• Mechanical seal: carbon-rotary/ceramic-stationary, BUNA-N elastomers.

• Temperature:104º F (40º C) continuous 140º F (60º C) intermittent.

• Class B Insulation

• Fasteners: 300 series stainless steel.

• Capable of running dry without damage to components.
