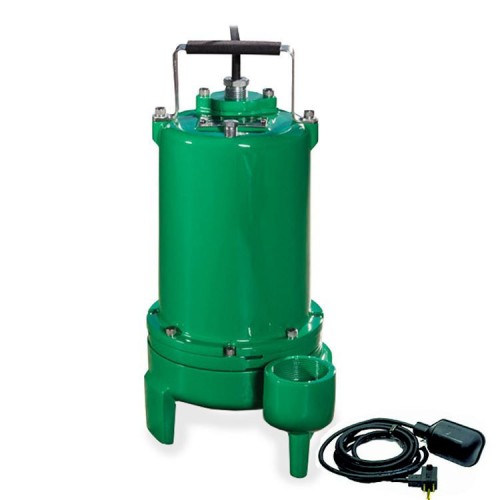

Myers - VRS10A 1 HP 115v Automatic Residential Grinder Pump

Myers VRS10A Residential Automatic Submersible Grinder Pump 1HP 115volt

Myers VR1 Installation manual

Myers VR1 Brochure

MYERS Grinders feature an axial cutter that slices solids in residential and light commercial wastewater. Myers VR1 is uses to upgrade residential sewage pumps that may not be able to handle the work.

Myers VRS10 Features

Wide Angle Float Switch (found on automatic models)

Piggy-back power cord plug

Cable Entry System

Proprietary cable seal prevents water from entering the motor.

Oil-Filled Motor

Provides constant bearing lubrication

High torque start/run capacitor

Internal capacitors requires no control panel

Integrated Heat Sensor

Protects motor from excessive heat. Automatically resets when motor has cooled

Shafts and Fasteners

Stainless steel for corrosion resistance

Shaft Seals

Oil-lubricated single carbon-ceramic faced seal

Impeller

Semi-open impeller does not clog or bind, pump-out vanes force solids away from seal to reduce pressure and seal wear.

Axial Cutter System

Cuts solids and trash in residential and light commercial waste streams without roping or clogging constructed of 440 stainless steel hardened to 57-60Rc

Cutter is replaceable without complete pump disassembly

Volute Case

2" Vertical Discharge

Carton dimensions: 13” X 13” X 26”  84 LB
