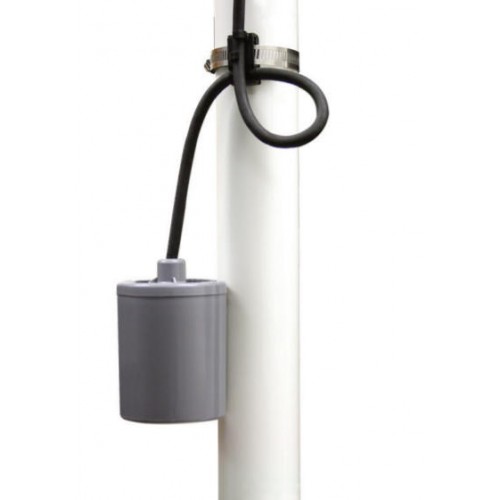

AmpMaster 30-foot-cord mechanically-activated, wide-angle 20 amp rated pump switch 30AMDWOP 1006313

SJE AmpMaster® 30AMDWOP 1006313 mechanically-activated, wide-angle 20 amp rated pump

switch is designed for direct control of pums up to 1 1/2 HP at 125 VAC and 3 HP at 250 VAC for

• grinder applications

• high head sewage pump applications

• lift station applications

• septic tank effluent pump (STEP) systems

The SJE AmpMaster® pump switch is not sensitive to rotation or turbulence

allowing it to be used in both calm and turbulent applications.

It is available for pump down applications only

SJE Rhombus Ampmaster product information

SJE Rhombus Ampmaster Installation Manual

Maximum pump running current of 20 amps

• Heavy-duty contacts mounted on high-conductivity copper substrates

• Controls pumps up to 1 1/2 HP at 125 VAC and 3 HP at 250 VAC

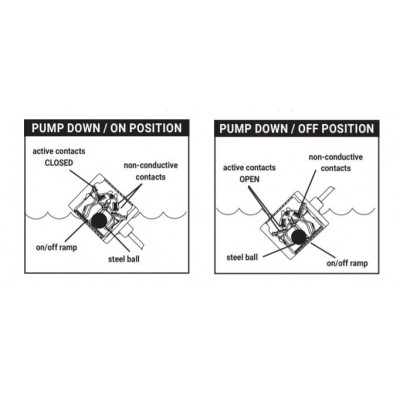

• Second set of non-conductive contacts enhance switch activation

• For direct wiring in 125 VAC or 250 VAC applications (piggy-back plug model not available)

• Adjustable pumping range of 9 to 24 inches (23 to 61 cm)

• Includes standard mounting clamp and boxed packaging
